TO RANK (Testing and Optimization of a Robotic ANKle)
Gli ultimi anni hanno visto un crescente interesse nello sviluppo di esoscheletri per gli arti inferiori finalizzati a fornire assistenza al movimento fisico o trattamenti di riabilitazione in ambito clinico. L’uso di interventi robotici ha dimostrato il potenziale per: migliorare significativamente i risultati dei trattamenti riabilitativi in termini di intensità e ripetibilità; diminuire il periodo di ospedalizzazione; e trasferire la riabilitazione in un ambiente domestico.

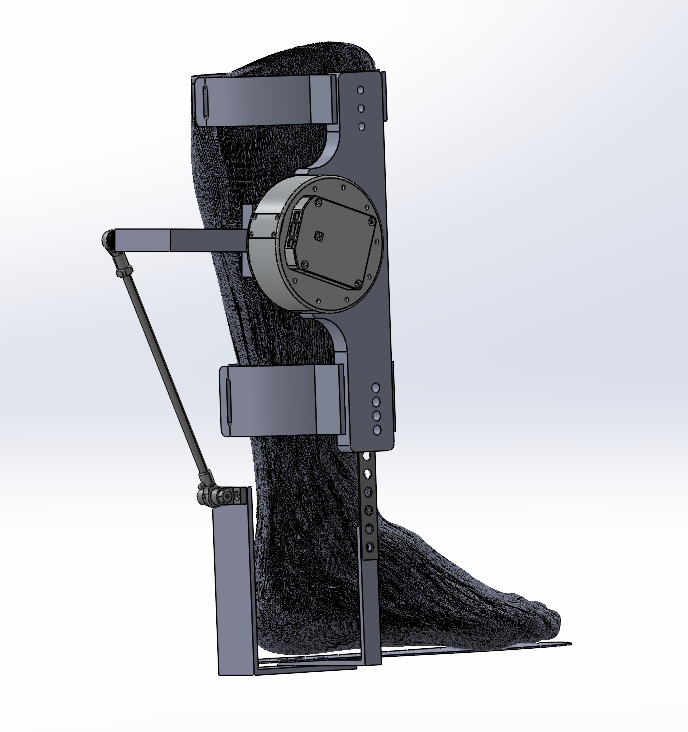

In questo contesto è stato sviluppato un esoscheletro attivo indossabile per l’articolazione della caviglia progettato per l’assistenza alla deambulazione dei bambini affetti da paralisi cerebrale e denominato “TO RANK”. L’esoscheletro è dotato di un servomotore che è in grado di erogare una coppia massima di 35 Nm, il quale, tramite un sistema di manovellismo, trasferisce il moto all’arto inferiore. Questo sistema è stato realizzato in metallo, a cause delle ingenti sollecitazioni meccaniche a cui è sottoposto. La restante parte del prototipo è stata progettata in Nylon caricato al carbonio, un materiale dalle ottime proprietà meccaniche e dal peso contenuto, che è stato realizzato tramite stampa 3D, a partire dal modello CAD. La figura di fianco rappresenta il Concept del modello.
Terminata la fase di progettazione meccanica, si è passato allo studio del controllo del servomotore, al fine di determinare la velocità e l’ampiezza di rotazione in base ai vari input esterni. A tale scopo è stata inserita nella scarpa una soletta sensorizzata, grazie alla quale si riesce a percepire quale parte del piede è a contatto con il terreno e, utilizzando un software sviluppato ad hoc, verranno fornite al motore le informazioni riguardante i vari movimenti da compiere. La figura di fianco mostra il prototipo assemblato dove si possono distinguere i vari componenti:
- Manovellismo in metallo;
- Shell di ancoraggio gamba e servomotore in nylon-carbonio;
- Cablaggio;
- Servomotore RMD-X8 Pro;
La ricerca non si ferma mai e migliorerà sempre, chissà cosa ci aspetterà in futuro!
Simona Ceccangeli
